12V DC install started - slowly.....

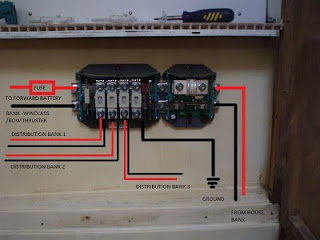

MasterShunt 500 and DC Distribution 500 installed outboard of chart table seat (ignore the sad paper mock up of the 120V A/C system) ;



Wiring Plan;




Distribution Unit - Digital DC 10X10Amp (Three, one port forward, one at chart table, one port side engine room.



All controlled by;



And switched (if necessary) by these guys;



I plan to have the system send me a txt message is the anchor light goes out or the bilge pump starts cycling...... that should annoy some purists. I may even give the system its own Facebook page.
